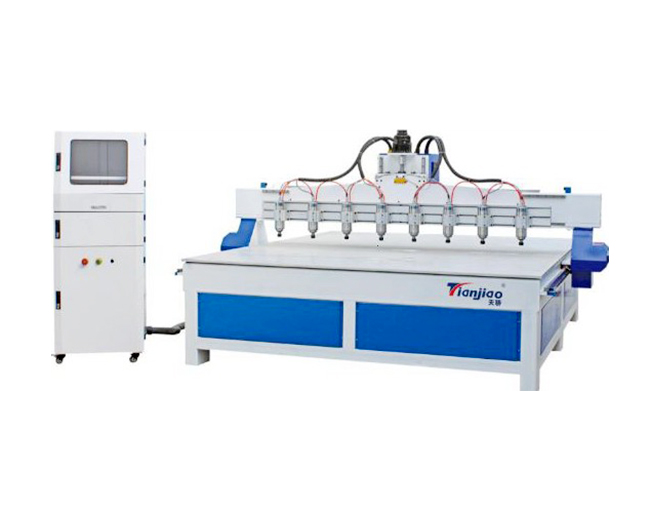

TJ2425 3d relief engraving wood cnc router

Guarantee for wood cnc router:

1: one year , freely guarantee

2: during one year , if any spare part broken in machine , our factory freely change a new one for you

3: longlife time freely provide technical support

after sale service for wood cnc router:

1: with machine , have detailed machine manual , software manual , controller manual , especially for new clients ,

2: our factory make a vivid traing CD

3: 24 hours , on line or phone , technical support

4: welcome visit our factory , learn machine face to face

Product information :

Advantage for wood cnc router :

1: working area 2.4x2.5 m suit for wood , kitchen these furniture work needed

2: cast steel machine structure , guarantee the machine stability

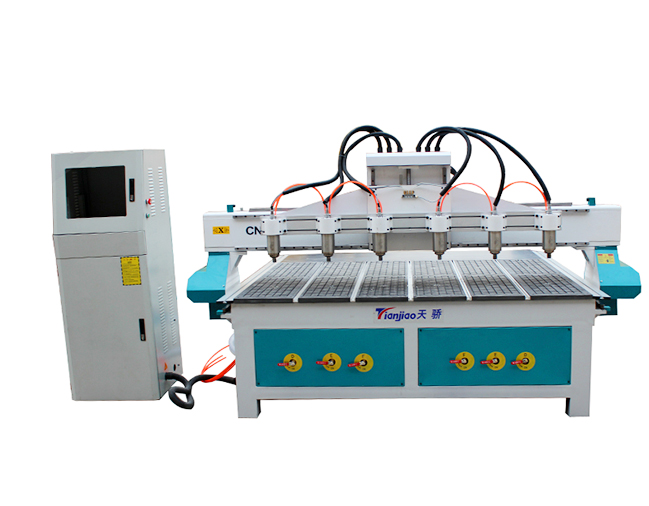

3: 2.2KW water cooling spindle with 6 pieces , 6 spindles can work at the same time

4: vacuum table suit for various material work , like MDF , PVC , acrylic , wood etc

Machine equippment for wood cnc router

Cast steel structure, 2400X2500 mm working area

Hiwin square orbit , rack& pinion for X axis and Y axis, ball screw for Z

Ncstudio control system , Artengraver Software

2.2KW water cooling spindle x 6

stepper motor

vacuum table with vacuum pump

20cutters( φ3.175 , φ6 , φ12.7), 3 collets

Technical paraments for wood cnc router :

Machine model	TJ 2425
XY working area	2400*2500 mm
Z working area	200 mm
Table size	2800*3100 mm
Max. speed	60 m/min
Max. working speed	30 m/min
Working delicacy	0.05 mm
Table	vacuum working table
Command	G codeu00 mmg*plt
Surrounding for software	Windows98/2000/xp
power	AC380 3 phases
Spindle	2.2KW water cooling spindle x 6
Speed of spindle	0-24000 rpm/min
Work mode	stepper motor , Y axis adopt double motors to drive .
Structure	Steel structure, square orbit, ball screw for z axle, gear-wheel for x axle and y axle
Engraving software	Artengraver
Control software	Ncstudio or DSP

Jinan Tianjiao Machinery Manufacture Co., Ltd.
