Main features:
1. Helical Racks and pinion:Compared with straight racks, helical racks run quieter ,
especially at high speeds, and increase higher load carrying capacity
2. Top brand guide rail from the world, HIWIN /PMI 20mm guide rail,
with dust proof function and free of lubrication lifetime.
3. Imported high precision ball screw with big lead.
4. T-slot table could use both vauum pump and clamps.
5. vacuum pump with big suction performance.
6. Table steel thickness is 4mm or 6mm ,8mm according the customers’choice.
Technical parameter：

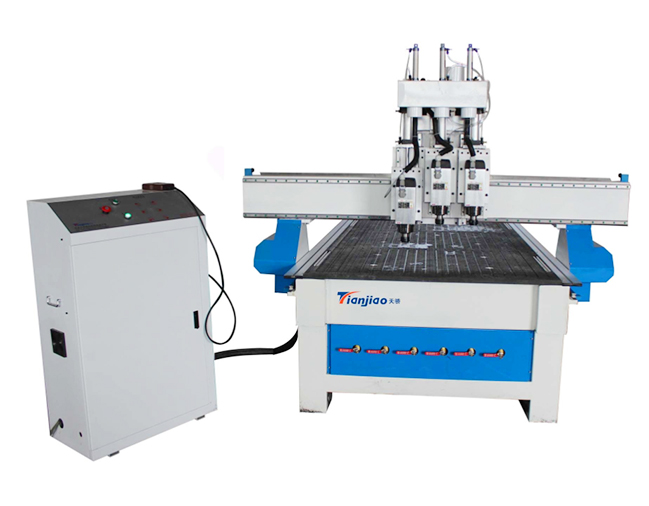

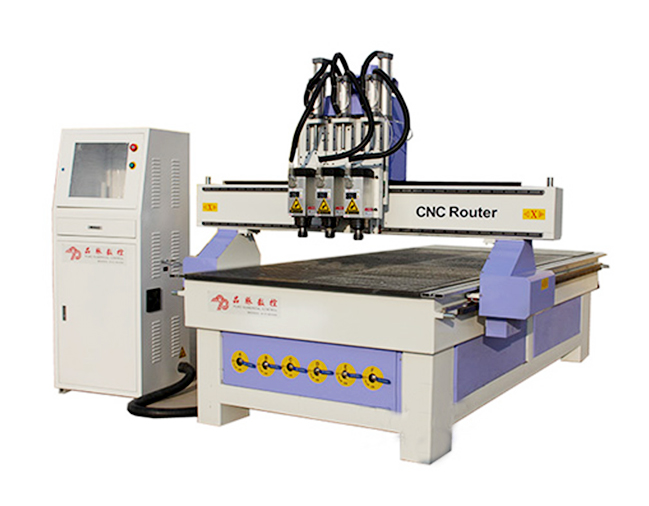

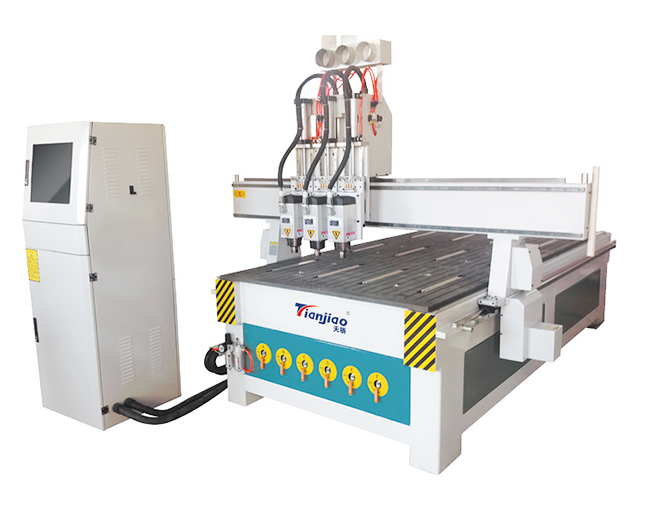

CNC Wood Router | ||
Configuration | Parameter | Option |
Model | TJ 1325 | 6090/1212/1224/1390 etc. |
Working area | 1300*2500*200mm | 1300*2500*300 |
Spindle | 4.5KW | 6KW/9KW for option |
Lathe bed | T slot heavy profile steel& Vacuum adsorption | |
X-Y-Z Structure: | X/Y axis:Rack and Pinion | |
Z axis: Taiwan Ball screw | ||
Control system | DSP | NC-Studio,Mach3,Syntec for choose |
Cooling system | Italy Air cooling | Domastic water cooling |
Cutting speed | 32000mm/min | According to the material |
Engraving speed | 25000mm/min | |
Rail | Taiwan HIWIN/PMI square linear guide rail | |
Drive motor | Japan servo motor/Step motor | Yaskawa/ Leadshine860 /yako2811 |
Spindle speed | 0-18000rpm/min | |
Software | Type3/Artcam/Wentai/Ucancam/ | |
Dust Collector Power | 3KW | |
Vacuum pum | 5.5KW | |
Inverter | Delta inverter(5.5KW) | FULING OR SIFANG |
Command | G code | |
Repositioning Accuracy | 0.05mm | |
Voltage | AC380V/3PH/50Hz | |
Running Environment | Temperature:0-45°C |
