rotary axis cnc router TJ 1325

Product Name:rotary axis cnc router TJ 1325
Product Model:TJ 1325 with rotary
Product No.:134159-533
Company:Jinan Tian Jiao Machinery Manufacture Co.,Ltd.
UpdateTime:2016.02.26
machine model :rotary axis cnc router
machine model :TJ 1325
working area :1300x2500 mm
spindle power :4.5KW Italy HSD
cooling type :air cooling
linear guide :HIWIN square orbit
driver type :helical rack&pinion
motor type :YASKAWA servo motor
after sale service :24 hours on line
Views:

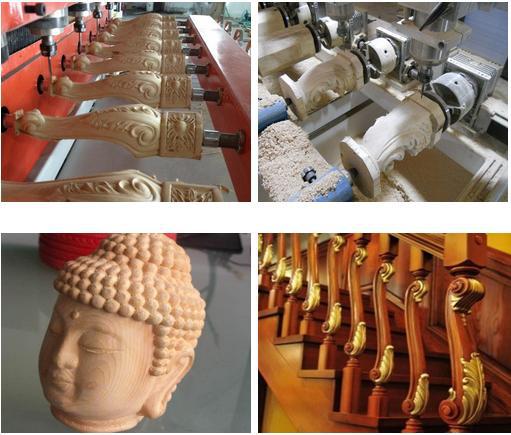

More pictures:



Click here to view the big picture

  • Description

Cast steel structure, 1300X2500 mm working area , square orbit, ballscrew for Z axis, rack & pinion for X axis and Y axis, DSP control system , Ucancam Software , 4.5KW Italy HSD air cooling spindle , YASKAWA servo motor , aluminum working table , 3 KW dust collector , 20cutters( φ3.175 , φ6 , φ12.7), 3 collets

 Technical parament :

Machine model

TJ 1325

XY working area

1300*2500 mm

Z working area

200 mm

Table size

1600*3100 mm

Max. speed

60 m/min

Max. working speed

30 m/min

Working delicacy

0.05 mm

Table

aluminum working table with PVC

Command

G code*u00* mmg*plt

Surrounding for software

Windows98/2000/xp

power

AC380 3 phases

Spindle

4.5KW air cooling spindle

Speed of spindle

0-18000 rpm/min

Work mode

servo motor , Y axis adopt double motors to drive .

Structure

Steel structure, square orbit, ball screw for z axle, gear-wheel for x axis and y axis

Engraving software

Ucancam V9

Control software

DSP
