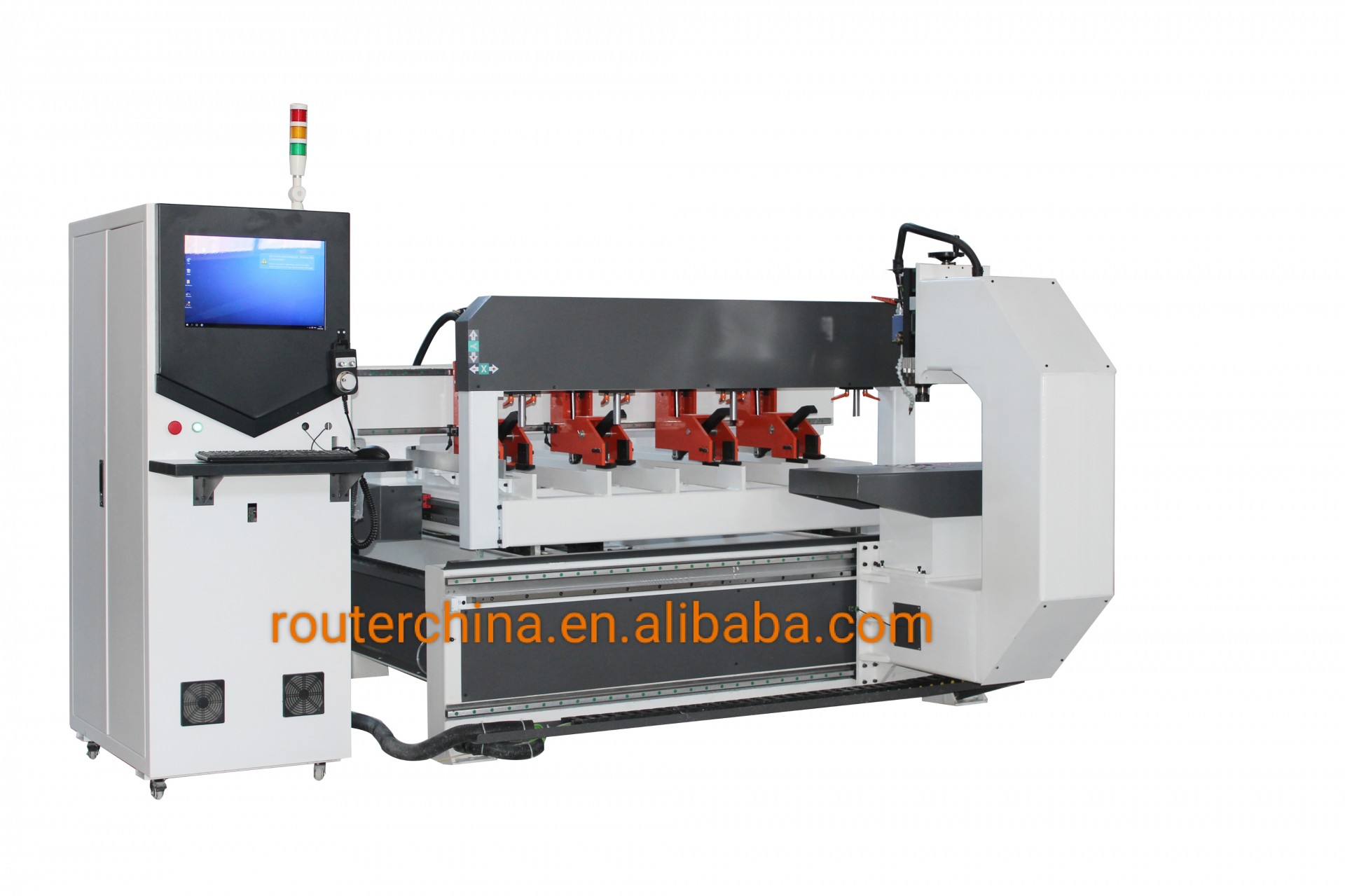

TJ-1500 solid wood NC cutting machine/vertical curved band saw

Used for solid wood furniture opening, milling, cutting straight material, bending material, hetero - material, processing solid wood bed, solid wood table and chair legs, solid wood furniture and other curved shaped material

Main configuration:

1. Solid wood opener customization system

2. Ydentong 15KW frequency converter

3. Taiwan brand 25 guide rails

4. Inwitten servo

5. Machine size: 2100*2600*1800mm

6. Processing length 1500mm

7. The thickness of wood processing is 150mm

8. Spindle speed: 18000rpm

9. Processing speed: 8000mm/min
